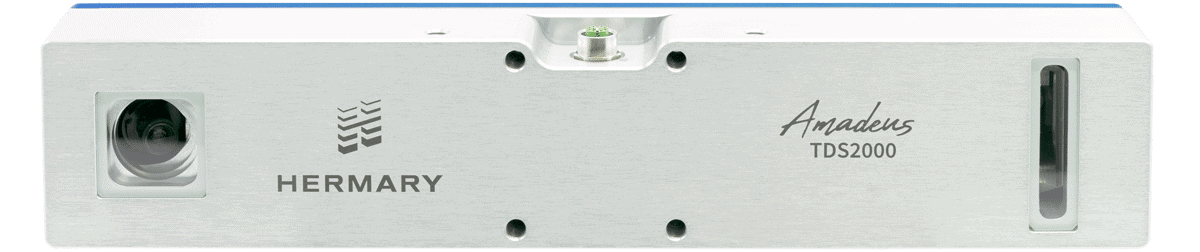

TDS2000
TDS2000 is a fully-integrated sheet of light scanner designed for industrial scanning applications and is a member of Hermary’s Amadeus Intelligent Machine Vision Architecture. The flagship 3D scanner offers more than twice the scan rate of the previous generation and outputs 85% more data points at 67% higher resolution, perfect for most industrial applications in 3D measurement, object inspection, feature recognition, and process optimization.
The versatility and potential of TDS2000 can be maximized through the Amadeus Intelligent Machine Vision Architecture, which builds on the IEEE 1588 Precision Time Protocol (PTP). This synchronization engine ensures all Amadeus devices in the same domain, such as a TDS2000 scanner, are synchronized to ± 10 ns. The scanner should be used with MVS208, which provides Power over Ethernet (PoE) and Precision Time Protocol (PTP), simplifying cabling, maintenance, and system setup.
- Features
- Class 2 laser triangulation scanner
- Fully-integrated device with Hermary’s Intelligent Amadeus Architecture
- Integrated software defines application-specific triggering and sequencing
- Equipped with active monitoring of device status
- Scan rate: 450 Hz (Full Scan Zone)
- Depth of field to 1,550 mm
- Resolution from 0.08 mm to 1.05 mm
- Benefits
- A member of Hermary’s Amadeus Intelligent Machine Vision Architecture
- Flexibility: range, speed, depth of field, and resolution to suit a wide variety of industrial applications
- Higher scan rate adjustable with ROI (region of interest)
- Up to 1,224 data points per scan to detect fine features on objects
- Built-in GigE Vision interface for standardized transmitting framework and fast data throughput and latency
- Specifications
- Dimensions: 382 x 75 x 54 mm (15 x 3.0 x 2.1 inches)
- Weight: 2.8 kg (6.2 lb)
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
- Data Points per Scan: Maximum 1,224
- Interface: 1000BASE-T Ethernet
- Electrical Supply: Power over Ethernet
- Enclosure Rating: IP67
- Applications
- Vision for robots
- Volumetric measurement
- Bakery automation
- Food inspection
- Object counting
- Material handling
- Metals
- Mining
- Product shape defect identification
- Pulp and paper
- Wood and lumber
- Warehouse/fulfillment center automation
- Many more
Future of 3D Machine Vision
High-speed Scan Rate Matching Fast-moving Conveyor Systems
User-defined Region Of Interest for Reduced Processing Time
High Resolution for Precision Feature Recognition
